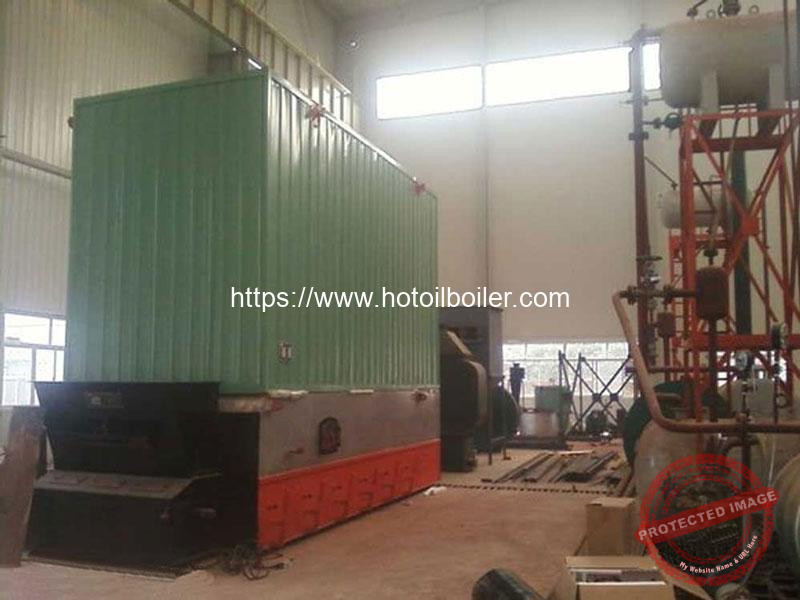

use coal as fuel, the thermal oil is heated in the tube. Using the circulating pump to force the liquid thermal oil circulation,and then transporting the heat to the thermal equipment. At last, the oil return back the thermal oil heater. All heaters are assembly structure which is easy for installation by just connecting system device by pipes. Intelligent system control makes coal fired thermal oil boiler operation easier and more simple. Controller with imitation screen display has auto igniting, burning, circulation pumps control, alarm functions.
Advantage Feature of
As we know, both water and steam are used as heat carriers in process heating systems. But at temperatures above 100℃, water and steam requires a corresponding higher operating pressure. In industrial heating this high temperature level is often a demand. In order to achieve the necessary high output of the process, you must design very high pressures steam boiler or water heater and this cost is very high and danger.
, a special oil-based thermal fluid are used as the heat carrier – instead of water or steam. This thermal fluid-also called heat transfer fluid – operates at atmospheric pressure all the way up to 300℃. Thermal oil offers the user high temperature at very low pressures.
General Drawing of 14MW Coal Fired Thermal Fluid Heaters
Parameter Table of
|Rated Power KW||1400||2000||2400||3000||4100||4700||6000||7000|
|Thermal Efficiency %||77.14||78.1||78.02||78.41||78.7||79.26||79.36|
|Max Working Pressure MPa||0.8|
|Max Medium Temperature ℃||320|
|Thermal Oil Volume m3||1.1||1.8||2.5||3.1||3.4||3.8||4.6||5.3|
|Circulation Volume m3/h||100||160||180||200||250||250||320||340|
|Connection Diameter DNmm||150||150||200||200||200||200||200||20|
|Fuel Consumption Kg/h||398||440||550||560||1173||1000||1689||1310|
|Electric Consumption KW||44.25||57.75||75.25||87||117||128||160||208|
|Total Weight kg||19070||23000||25000||35000||37000||45000||68720||69870|

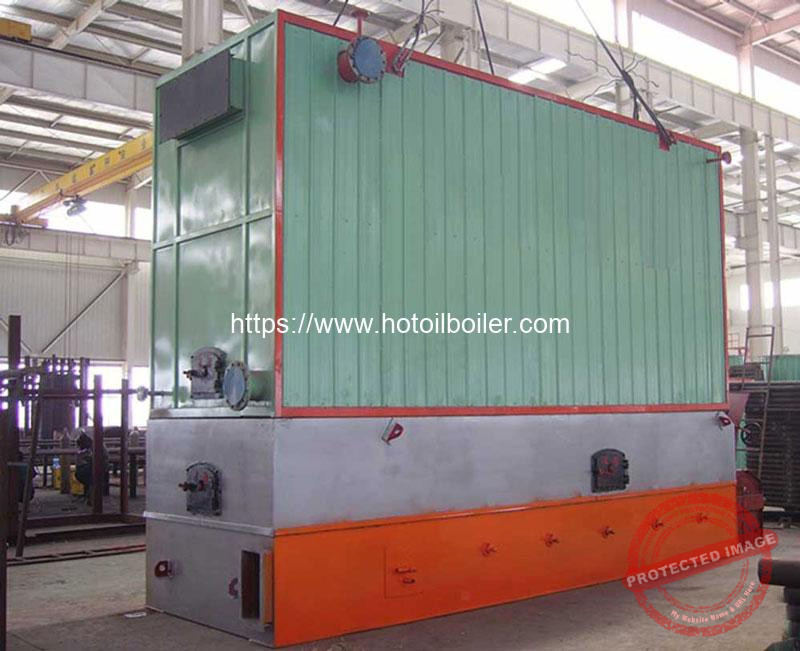

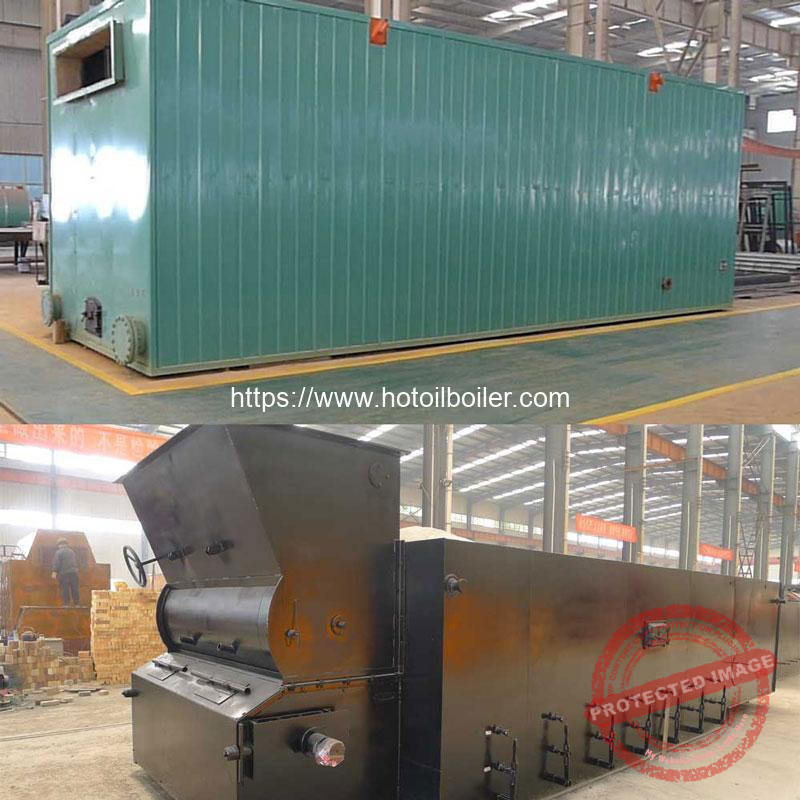

Coal Fired Thermal Fluid Heaters Production Equipment
Coal Fired Thermal Fluid Heaters Factory Visit
Romiter Group Limited are committed to manufacturing and exporting complete enery saving heating equipment, including thermal oil boiler (Thermal fluid heat transfer product), thermal oil steam generator, cryogenic storage Dewar. After many years reach & development, Romiter Group can provide coal fired thermal oil boiler, gas fired thermal oil boiler, diesel fired thermal oil boiler, electric heating thermal oil boiler, coal fired molten salt heater, gas or oil fired molten salt heater and all type liquid gas vacuum cryogenic storage Dewar.
