CWSF Thermal Oil Heater

Coal Water Slurry Fuel Thermal Oil Boilers

Thermal Oil Boilers use diesel or light oil as fuel, the thermal oil is heated in the tube. Using the circulating pump to force the liquid thermal oil circulation,and then transpo ...
Product Details

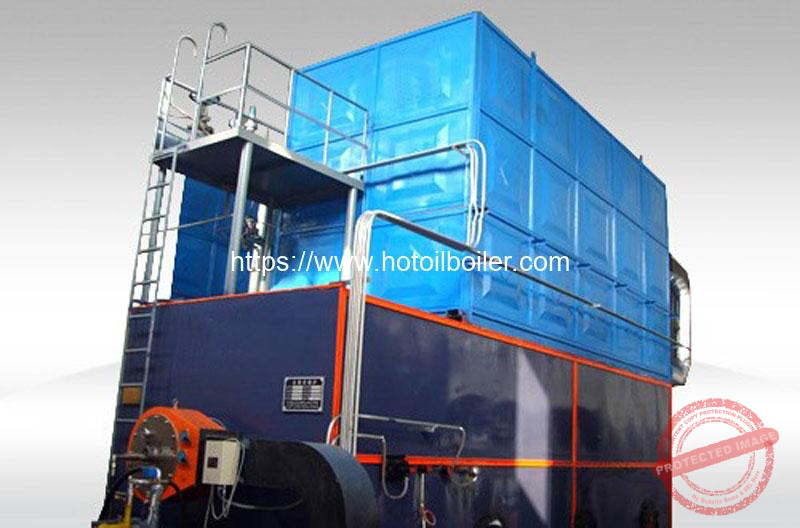

coal-water-slurry-fuel(CWSF)-fired-thermal-oil-heaters

Thermal Oil Boilers use diesel or light oil as fuel, the thermal oil is heated in the tube. Using the circulating pump to force the liquid thermal oil circulation,and then transporting the heat to the thermal equipment. At last, the oil return back the thermal oil heater. Two return structure enhance the thermal efficiency and lower flue gas temperature. Thicker insulated material layer makes radiating at minimum limit. All heaters are assembly structure which is easy for installation by just connecting system device by pipes. Intelligent system control makes coal fired thermal oil boiler operation easier and more simple. Controller with imitation screen display has auto igniting, burning, circulation pumps control, alarm functions.



Feature of Coal Water Slurry Fuel (CWSF)

  • Safe storage and transportation fuel: The presence of water in CWS reduces harmful emissions into the atmosphere and makes the coal explosion-proof. By converting the coal into a liquid form, delivery and dispensing of the fuel can be simplified.
  • Low cost fuel: Because of the relatively low cost of coal when compared to other energy sources, CWS is a very competitive alternative to heating oil and gas. Depending on geographical area the price per unit energy of CWS may be 30% to 70% lower than the equivalent oil or gas.
  • Cost effective and environmental friendly: Low emissions and low BTU cost (Gcal or MWh) make CWS very cost effective and environmental friendly fuel for heat and power generation.



Advantage Feature of Thermal Oil Boilers

As we know, both water and steam are used as heat carriers in process heating systems. But at temperatures above 100℃, water and steam requires a corresponding higher operating pressure. In industrial heating this high temperature level is often a demand. In order to achieve the necessary high output of the process, you must design very high pressures steam boiler or water heater and this cost is very high and danger.

Thermal oil boilers, a special oil-based thermal fluid are used as the heat carrier – instead of water or steam. This thermal fluid-also called heat transfer fluid – operates at atmospheric pressure all the way up to 300℃. Thermal oil offers the user high temperature at very low pressures.

Drawing of Coal Water Slurry Fuel Thermal Oil Boilers

coal-water-slurry(CWS)-fired-thermal-oil-heaters-2

Parameter Table of Coal Water Slurry Fuel Thermal Oil Heaters

Model YGL-1800A YGL-3000A YGL-4600A YGL-70000A YGL-14000A
Power 1800(160) 3000(250) 4600(400) 7000(600) 14000(1200)
Thermal Efficiency 78 78 78 78 80
Rated Pressure 0.8 0.8 0.8 0.8 0.8
Fuel Consumption 426~450 710~750 1090~1150 1700~1800 3450~3600
Heating Surface 24/76 42/133 67/232 125/315 213/660
Rated Working Temperature 340 340 340 320 320
Oil Circulating Volume 100 160 260 400 635
Outline Dimension(L*W*H) 7.0*2.7*4.5 7.8*2.9*5.3 9.3*3.2*6.5 10*3.5*6.5 17.6*5.3*8.6
Weight(t) 35 48 75 103 190
Transportation Weight(t) 22 30 45 60 30
Transportation Dimension(L*W*H) 6.8*2.7*2.2 7.7*2.9*2.5 8.3*3.2*2.8 9.1*3.5*3.0 13.7*4.6*3.8

Thermal Oil Boiler Production Equipment

Thermal-Oil-Boiler-Factory-Production-Equipment

Factory Visit


Company Profile


Romiter Group Limited are committed to manufacturing and exporting complete enery saving heating equipment, including thermal oil boiler (Thermal fluid heat transfer product), thermal oil steam generator, cryogenic storage Dewar.  After many years reach & development, Romiter Group can provide coal fired thermal oil boiler, gas fired thermal oil boiler, diesel fired thermal oil boiler, electric heating thermal oil boiler, coal fired molten salt heater, gas or oil fired molten salt heater and all type liquid gas vacuum cryogenic storage Dewar.
