Electric Heating Thermal Oil Heaters

Electric heating thermal oil heaters (also known as heat conduction oil heater), the electric heating tube is directly inserted into the thermal oil (heat conduction oil) for direc ...
Product Details

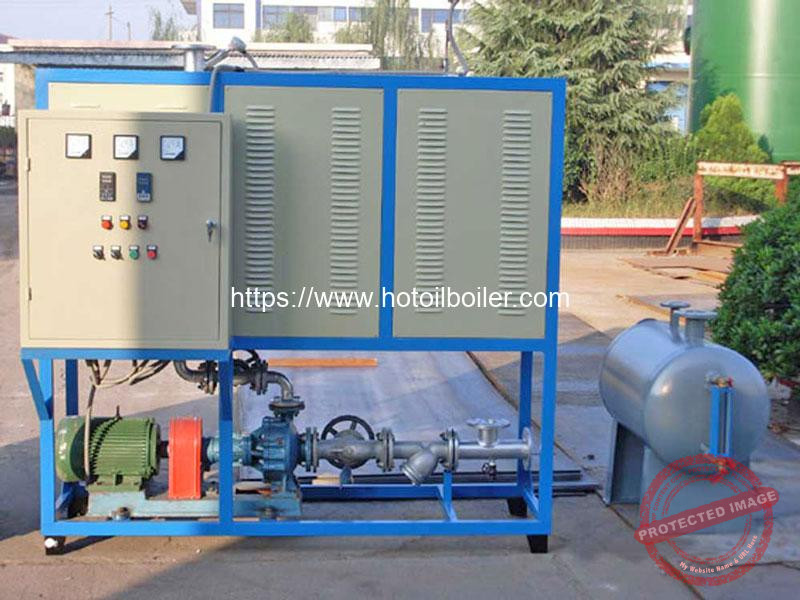

Electric-Heating-Thermal-Oil-Heaters-Thermal-Oil-BoilersElectric heating thermal oil heaters (also known as heat conduction oil heater), the electric heating tube is directly inserted into the thermal oil (heat conduction oil) for direct heating. A circulating pump is used to create liquid-phase circulation of heat conduction oil to transfer the heat to one or several pieces of heat using equipment. After unloaded in the heat using equipment, the heat conduction oil will return to the heater via the circulating pump, again to absorb heat, and transfer the heat to the heat using equipment. This process is repeated again and again, realizing continuous transfer of heat. As a result, the temperature of objects being heated rises, and heating requirements are fulfilled.

Application of Electric Heating Thermal Oil Boilers

Thermal oil heater temperature controlled by digital-display attemperation, with super temperature alarm, low oil level alarm, super pressure alarm functions, and it is widely used in chemical, petroleum, machinery, printing and dyeing, textile, food, the ships, the film industries. It is a kind of high energy efficiency heating equipment.

Advantage Feature of Electric Heating Thermal Oil Boilers

1.    Low working pressure
Liquid phase transport heat energy,can under low working pressure and get high temperature, heat carrier is smaller than the water saturation steam pressure 70 ~ 80 times,general heating for less than 0.3 MPa.
2.    High heating temperature
Electric heating thermal oil heater can achieve the temperature of 280 ℃. The heating temperature is automatic control, high sensitivity, heating stability.
3.    Safe and reliable
Heat conduction oil furnace is equipped with perfect operation control and safety monitoring device, easy operation, safety and reliability.
4.    Environmental protection design
Heat conduction oil furnace is provided with new electrical heating system,using electric instead of coal, saving investment, environmental and no pollution, and heat conduction oil furnace heating up fast, high efficient and more economic.

Parameter Table of Electric Heating Thermal Oil Boilers

Model YDW-9KW YDW-30KW YDW-48KW YDW-60KW YDW-72KW YDW-90KW
Rated Power KW 9 30 48 60 72 90
104kcal 0.8 2.5 4 5 6 8
Thermal Efficiency % 97
Design Pressure mpa 1
Max Temperature 300
Thermal Oil Volume m³/h 0.006 0.025 0.025 0.05 0.11 0.08
Connection Diameter 25 50 50 50 50 50
Power Consumption KW 10.5 33 51 63 75 95.5
Dimension L mm 1460 1600 2200 1900 2000 1780
W mm 550 710 1100 1100 1700 485
H mm 405 1384 1550 1576 2000 2215
Weight 155 580 680 720 800 950
Model YDW-120KW YDW-160KW YDW-240KW YDW-360KW YDW-480KW YDW-600KW
Rated Power KW 120 160 240 360 480 600
104kcal 10 13 20 30 40 50
Thermal Efficiency % 97
Design Pressure mpa 1
Max Temperature 300
Thermal Oil Volume m³/h 0.11 0.11 0.21 0.35 0.4 0.5
Connection Diameter 50 65 65 80 80 100
Power Consumption KW 125.5 167.5 255 376.5 496.5 623.5
Dimension L mm 1780 1780 2150 2150 2650 2150
W mm 965 1100 2129 2600 2000 3100
H mm 2006 1924 1650 1950 2600 1950
Weight 1150 1350 2650 3150 3430 4150

Thermal Oil Boiler Production Equipment

Thermal-Oil-Boiler-Factory-Production-Equipment

Factory Visit


Company Profile

Romiter Group Limited are committed to manufacturing and exporting complete enery saving heating equipment, including thermal oil boiler (Thermal fluid heat transfer product), thermal oil steam generator, cryogenic storage Dewar.  After many years reach & development, Romiter Group can provide coal fired thermal oil boiler, gas fired thermal oil boiler, diesel fired thermal oil boiler, electric heating thermal oil boiler, coal fired molten salt heater, gas or oil fired molten salt heater and all type liquid gas vacuum cryogenic storage Dewar.
