Coal Fired Thermal Oil Boiler

YGL 300000Kcal Coal Fired Thermal Oil Heaters

2400KW Coal Fired Thermal oil heater use coal as fuel, the thermal oil is heated in the tube. Using the circulating pump to force the liquid thermal oil circulation,and then trans ...
Product Details

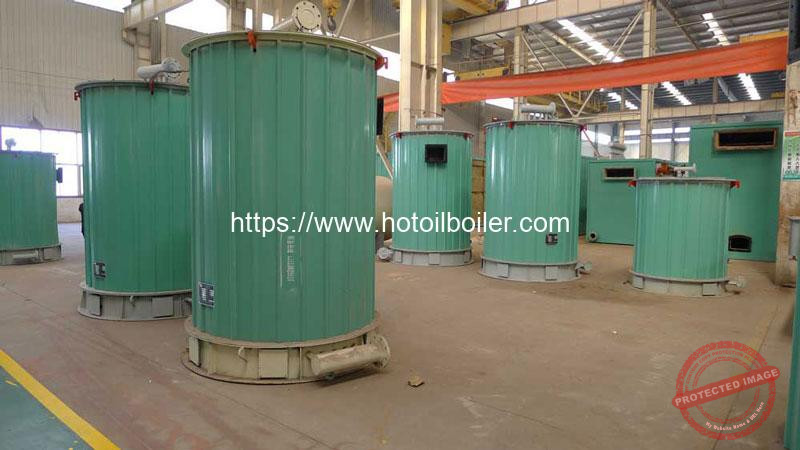

300000Kcal YLL Coal Fired Thermal Oil Boilers

2400KW Coal Fired Thermal oil heater use coal as fuel, the thermal oil is heated in the tube. Using the circulating pump to force the liquid thermal oil circulation,and then transporting the heat to the thermal equipment. At last, the oil return back the thermal oil heater. All heaters are assembly structure which is easy for installation by just connecting system device by pipes. Intelligent system control makes coal fired thermal oil boiler operation easier and more simple. Controller with imitation screen display has auto igniting, burning, circulation pumps control, alarm functions.

Advantage Feature of 2400KW Coal Fired Thermal Oil Boilers

As we know, both water and steam are used as heat carriers in process heating systems. But at temperatures above 100℃, water and steam requires a corresponding higher operating pressure. In industrial heating this high temperature level is often a demand. In order to achieve the necessary high output of the process, you must design very high pressures steam boiler or water heater and this cost is very high and danger.

YLL-Coal-Fired-Thermal-Oil-Boilers-Thermal-Oil-Heaters

Thermal oil boilers, a special oil-based thermal fluid are used as the heat carrier – instead of water or steam. This thermal fluid-also called heat transfer fluid – operates at atmospheric pressure all the way up to 300℃. Thermal oil offers the user high temperature at very low pressures.

Specification of YGL 350KW Coal Fired Thermal Oil Boilers

Model:YGL-350MA

Rated thermal power:350kw (300000kcal)

Thermal efficiency:76%

Pressure:1.1Mpa

Working pressure:0.8Mpa

Max. temperature:340℃

Pipe DN: 65mm

Circulation oil volume: 80m3/h

Fuel: Coal or Wood

Fuel consumption: 80 kg/h

Dimension: 1700x1700x3635mm

Weight: 4700kg



Parameter Table of Vertical Coal Thermal Oil Boilers


Type YGL-120F YGL-240F YGL-350F YGL-500F YGL-700F
10*104Kcal 20*104Kcal 30*104Kcal 40*104Kcal 60*104Kcal
Rated Power kW 120 240 350 500 700
Thermal Efficiency %                          ≥73
Pressure Mpa 1.1 1.1 1.1 1.1 1.1
Max. Temp. °C 340 340 340 340 340
Circulation Oil m3/h 12.5 20 30 40 60
Pipe DN 50 50 65 65 100
System Power kW 6.7 10 14.1 14.1 23.5
Fuel Waste Wood, Biomass
Fuel Weight kg/h 61 128 191 267 375
Dimension Diameter 1150 1300 1700 1700 1960
Height 2385 2650 3060 3475 3805
Total Weight kg 1560 1960 3520 3800 4900

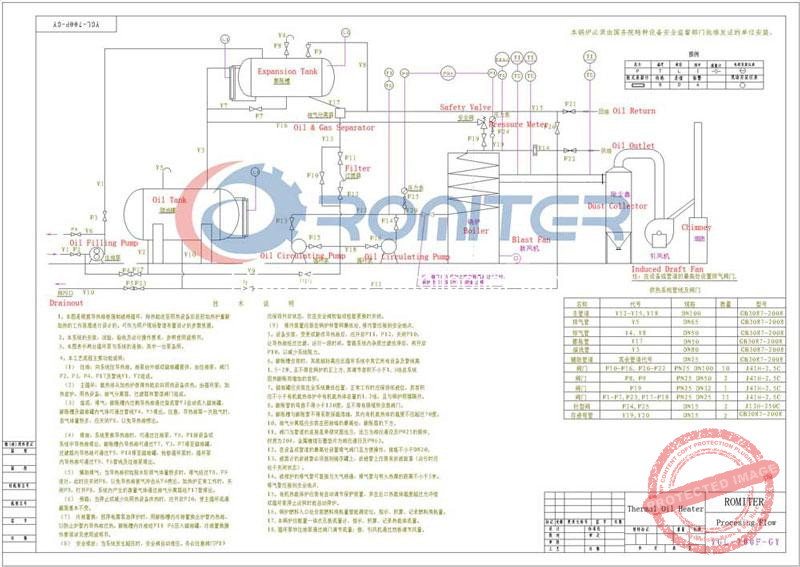

Vertical Coal Fired Thermal Oil Boiler Working Flow




YGL-700KW-Coal-Fired-Thermal-Oil-Boiler,-Hot-Oil-Boilers

YGL-700KW-Coal-Fired-Thermal-Oil-Boiler,-Hot-Oil-Boilers-2

Hot Oil Boiler Production Equipment


Thermal-Oil-Boiler-Factory-Production-Equipment

Factory Visit


Company Profile

Romiter Group Limited are committed to manufacturing and exporting complete enery saving heating equipment, including thermal oil boiler (Thermal fluid heat transfer product), thermal oil steam generator, cryogenic storage Dewar.  After many years reach & development, Romiter Group can provide coal fired thermal oil boiler, gas fired thermal oil boiler, diesel fired thermal oil boiler, electric heating thermal oil boiler, coal fired molten salt heater, gas or oil fired molten salt heater and all type liquid gas vacuum cryogenic storage Dewar.
