4.1MW Chain Grate Coal Fired Thermal Oil Heaters

4100KW Coal Fired Thermal oil heater use coal as fuel, the thermal oil is heated in the tube. Using the circulating pump to force the liquid thermal oil circulation,and then trans ...
Product Details

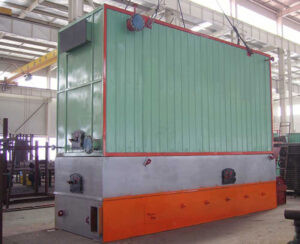

4.1MW Chain Grate Coal Fired Thermal Oil Heaters

4100KW Coal Fired Thermal oil heater use coal as fuel, the thermal oil is heated in the tube. Using the circulating pump to force the liquid thermal oil circulation,and then transporting the heat to the thermal equipment. At last, the oil return back the thermal oil heater. All heaters are assembly structure which is easy for installation by just connecting system device by pipes. Intelligent system control makes coal fired thermal oil boiler operation easier and more simple. Controller with imitation screen display has auto igniting, burning, circulation pumps control, alarm functions.

Advantage Feature of 4100KW Coal Fired Thermal Oil Boilers

As we know, both water and steam are used as heat carriers in process heating systems. But at temperatures above 100℃, water and steam requires a corresponding higher operating pressure. In industrial heating this high temperature level is often a demand. In order to achieve the necessary high output of the process, you must design very high pressures steam boiler or water heater and this cost is very high and danger.

Thermal oil boilers, a special oil-based thermal fluid are used as the heat carrier – instead of water or steam. This thermal fluid-also called heat transfer fluid – operates at atmospheric pressure all the way up to 300℃. Thermal oil offers the user high temperature at very low pressures.

General Drawing of 4.1MW Chain Grate Coal Fired Thermal Oil Heaters

YLW-4.1MW-Chain-Grate-Coal-Fired-Thermal-Oil-Boilers-Structure-Drawing

Technical parameters

  • Model: YLW-4100MA
  • Capacity: 3500X104kcal/h
  • Rated capacity: 4.1MW
  • Thermal efficiency: >78%
  • Pressure: 1.1MPa
  • Max temperature:320℃
  • Circulation oil: 250m3/h
  • Pipe DN: 150mm
  • Fuel weight: 767kg/h
  • Fuel: coal
  • Length: 6814mm
  • Width: 2500mm
  • High: 4874mm
  • Weight: 40000kg

Thermal Oil Heaters Production Equipment


Thermal-Oil-Boiler-Factory-Production-Equipment

Factory Visit


Company Profile

Romiter Group Limited are committed to manufacturing and exporting complete enery saving heating equipment, including thermal oil boiler (Thermal fluid heat transfer product), thermal oil steam generator, cryogenic storage Dewar.  After many years reach & development, Romiter Group can provide coal fired thermal oil boiler, gas fired thermal oil boiler, diesel fired thermal oil boiler, electric heating thermal oil boiler, coal fired molten salt heater, gas or oil fired molten salt heater and all type liquid gas vacuum cryogenic storage Dewar.
